20' x 5' Concrete T-Wall Barrier Panel
When your project demands maximum vertical reach and unyielding structural strength, the U.S. Barricades® 20' x 5' Precast Concrete T-Wall Panel delivers. Standing an impressive 20 feet tall and weighing 20,000 lbs, this is our largest and most robust freestanding modular barrier.
Engineered with heavy-duty steel reinforcement and a wide stabilizing base, these colossal panels are designed to hold back immense loads. They are the ideal solution for major infrastructure projects, large-scale aggregate storage, bulk material transfer stations, and extreme high-security perimeters.
Bypass the massive delays, extensive formwork, and weather dependencies of casting 20-foot walls in place. Our precast T-Walls are manufactured under strict ASTM standards in a controlled environment, meaning they arrive on-site fully cured and ready to be lifted into position. Whether deployed as a permanent foundation wall or a heavy-duty temporary barrier, this system offers the fastest installation time for walls of this magnitude.
Key Benefits:
Maximum Scale: At 20 feet high, this panel provides unmatched vertical retention and security without poured-in-place construction.
Massive Stability: The 20,000 lb weight and deep T-shaped base ensure exceptional load-bearing capacity and resistance to lateral forces.
Rapid Deployment: Factory-produced panels dramatically reduce on-site labor, minimizing disruption and speeding up major construction timelines.
Industrial Grade: Built to withstand severe impact, extreme weather, and the harshest industrial environments with virtually zero maintenance.
American Made: Manufactured entirely in the United States to the highest quality control and engineering standards.
Product Specifications
Product Name: Concrete T-Wall Barrier Panel 20' x 5'
Product Code: TWB205
Manufacturer: U.S. Barricades®
Condition: New
Material: Steel-Reinforced Precast Concrete

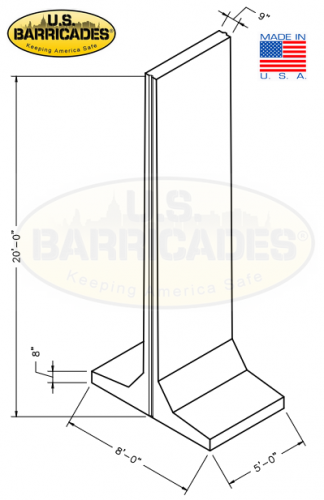

Dimensions: 20 ft. H x 5 ft. W x 8 ft. D (240″ Height x 60″ Width x 96″ Depth)
Weight: 20,000 lbs
Origin: Made in the United States
Requires heavy machinery/crane for unloading and installation. Call our engineering team to discuss logistics and freight quotes.
View or download a PDF for this product
